About This File
IPL Wiring from Toro Master Parts Viewer
68 pages 4.88MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Includes Kohler M12S-471527 ipl
On the Belgium list
Original operator manual #810569R1
Original IPL #810607R1

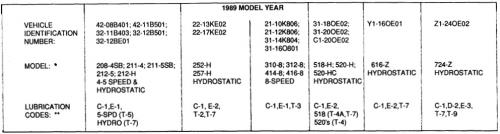

Lube chart SS
Details & Attachments
3 pages 119.67KB
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
1989 312-8 model 21-12K806
1989 serial numbers that have shown up for the 21-12K806
0000035
0003847
0008144 - Model and year a guess
0035192
0035502 - Build date 2649 looks wrong
0035606 - Build date 1988 8207 July 25 Monday [0207]
0035684
0035734
0036145
0036291
0036536 - Build date 1988 8287 October 13 Thursday
0036731
0036781
0036917 to 37341 used a substitute low oil relay. See PSB #447
0037107
0037223
0037341 back to 36917 used a substitute low oil relay. See PSB #447
0037630
0037687 - Build date 1988 8344 December 09 Friday
0037731
0038057
0038273 - Build date 1989 9025 January 25 Wednesday
0038474
0038703
0039092
0039174
0039478 - Model year a guess
0039620
0039652 - Build date 1989 9080 March 21 Tuesday
0040065
0040279
0041044
0041297
0041619
0041652
0041953
0041958
Links
For tractor operator manual and wiring see
For engine operator manual see
For engine service manual see
For transmission service manual see
