About This File
IPL Wiring from Toro Master Parts Viewer
68 pages 4.87MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Includes Kohler M10S-461521 ipl
Original operator manual #810569R1
Original IPL #810607R1
On the Belgium list
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

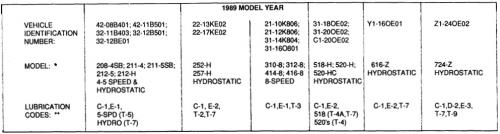

Lube chart SS
Details & Attachments
3 pages 118.04KB
1989 310-8 model 21-10K806
1989 serial numbers that have shown up for the 21-10K806
0003654
0003657 to 36803 used a substitute low oil relay. See PSB #447
0035097
0035107 - Build date 1988 8x15
0035513
0035796
0035962
0036339 - Build date 1988 8306 November 01 Tuesday (8806)
0036381
0036528
0036803 back to 3657 used a substitute low oil relay. See PSB #447
0037501
0037632
0037701
0037750
0038368
0038724
0038933
Links
For tractor operator manual and wiring see
For engine operator manual see
- Not included but should work
For engine service manual see
For transmission service manual see
