About This File
IPL from Toro Master Parts Viewer
33 pages 2.51MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
On the Belgium list
Set-up instructions
4 pages 819.33KB
50" mower deck
Mower drive belt 109909 (1/2" x 117")
Mower spindle belt 30203 replaced by 113625 (5/8" x 105.75") (Gates 6584BR 21/32" x 104-1/4" raw edge)
Mower blade 30227 and 113579-09 replaced by 113579 (17" and 3 required)

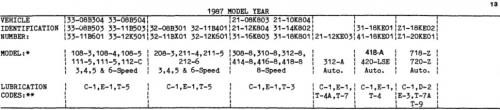

Lube chart SS
Details & Attachments
2 pages 108.79KB
1987 718-Z model Z1-18KE02
1987 serial numbers that have shown up for the Z1-18KE02
20165
20316 - Build date 1987 7035 February 04 Wednesday
20448 - May be a 1986 model Z1-18KE01
