About This File
IPL from Toro Master Parts Viewer
41 pages 3.85MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
4-pinion differential @ Toro not correct so replaced the ipl with the correct pages
Original IPL #810480R1
On the Belgium list
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
Tractor weight 585 lbs.

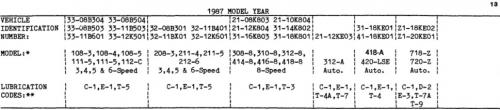

Lube chart SS
Details & Attachments
3 pages 118.04KB
1987 418-8 model 31-18K801 with magneto ignition and 15 amp stator
Electric attachment lift standard equipment
Repair kits for 111273 linear actuator
Clutch assembly 110990
Cover tube 110987
Drive screw 110991
Front housing 110993
Intermediate gear set 110989
Motor 110992
Rear housing 11988
Sealing kit 110994
