About This File
IPL from Toro Master Parts Viewer
41 pages 3.74MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Original IPL #810480R1
On the Belgium list
4-pinion differential @ Toro not correct so replaced the ipl with the correct pages

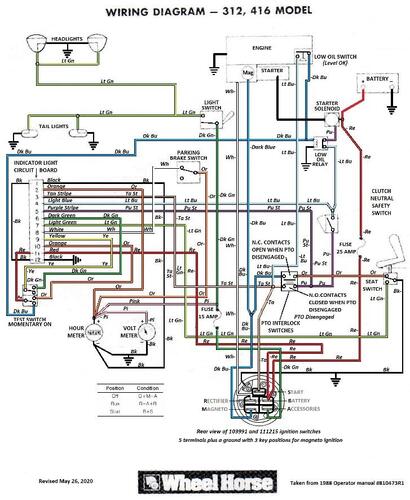

Modified wiring from owner manual #810473R1 Revised Color pdf
1 page 701KB
Magneto ignition with 3 amp unregulated charging system
Demystification Guide not correct - shows 15 amp stator.
Tractor weight 553 lbs.
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

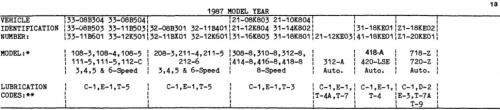

Lube chart SS
Details & Attachments
3 pages 118.47KB

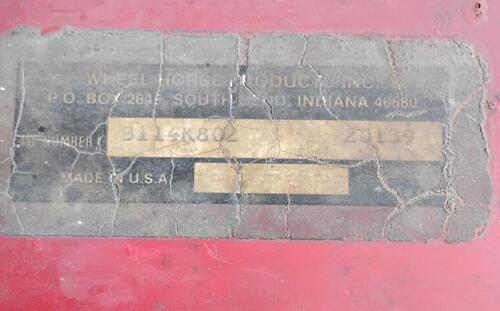

1987 414-8 model 31-14K802 with magneto ignition and 3 amp unregulated charging system

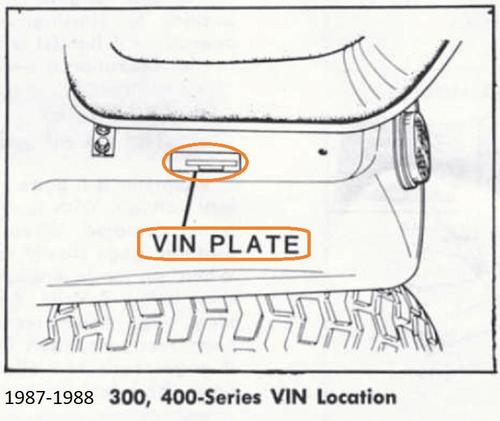

1987 serial numbers that have shown up for the 31-14K802
20497
20751
21124
21339
21370
28077
