Tractor 1987 312-A D&A TIPL Wiring SN.pdf

Sign in to follow this

gwest_ca

7 Screenshots

About This File

IPL from Toro Master Parts Viewer
43 pages 3.35MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

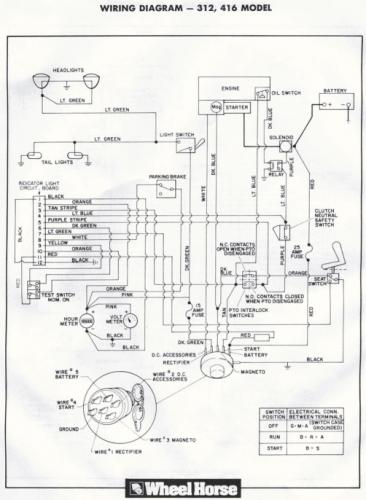

Wiring only pdf

1 page 288KB



Original IPL #810480R1
On the Belgium list



Tractor weight 584 lbs.

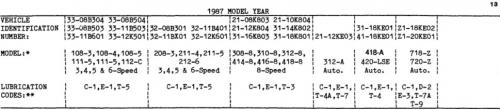

Lube chart SS



Details & Attachments
3 pages 118.47KB



Transmission drive belt 108501 - (HB/5L x 81.50" or 5/8" x 81.5")



1987 312-A model 21-12KE03 with magneto ignition, low oil switch and 15 amp stator

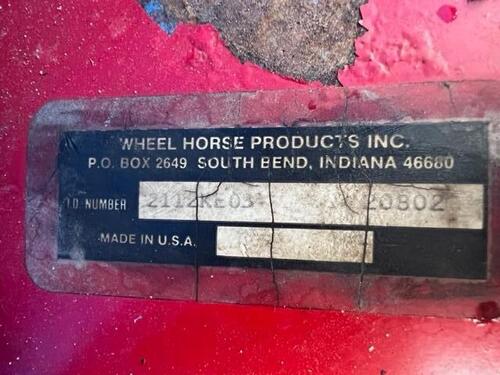

1987 serial numbers that have shown up for 21-12KE03

20405

20468

20483
20501

20802
20864








×
