About This File
IPL from Toro Master Parts Viewer
43 pages 3.20MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Original IPL #810480R1
On the Belgium list

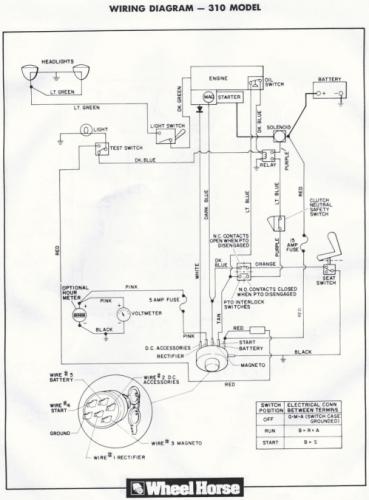

Wiring only pdf
1 page 240KB
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
Tractor weight 529 lbs.

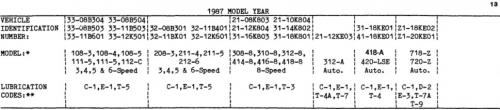

Lube chart SS
Details & Attachments
3 pages 117.16KB
1987 310-8 model 21-10K804 with magneto ignition and 3 amp unregulated charging system plus low oil switch. Low oil light only - no idiot panel

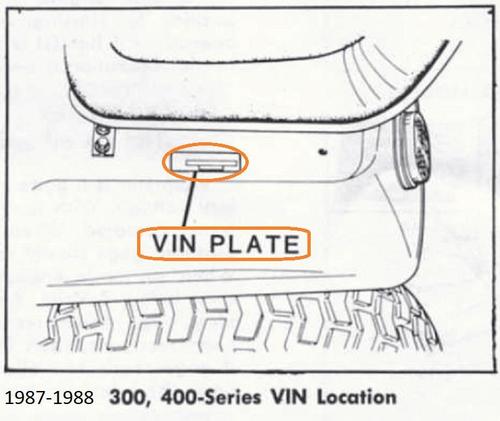

1987 serial numbers that have shown up for the 21-10K804
20051
20304
20403
20514
20545
20559
20652
20828
21102 - Model year and number a guess
21599
22188
22564
22649
23101 - Model year and number a guess
23278
23535 - Model year and number a guess
23490
24472 - Model year and number a guess
