Tractor 1986 420-LSE Twin Auto D&A LIPL SN.pdf

Sign in to follow this

gwest_ca

4 Screenshots

About This File

200 units built



Tractor weight 790 lbs.

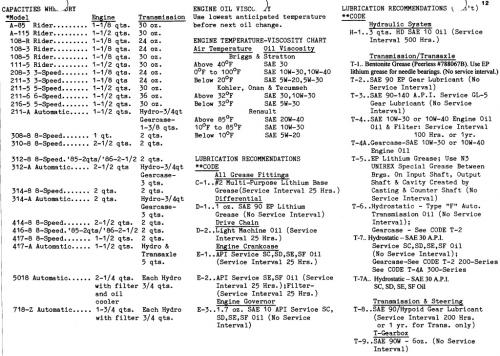

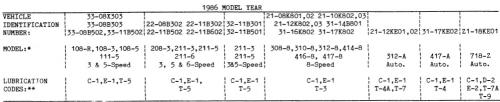

Lube chart SS - 420-LSE not in it


Details & Attachments
3 pages 119.45KB



Transmission drive belt 108501 - (HB/5L x 81.50" or 5/8" x 81.5")

Uses 111215 replaced by 103991 5-terminal 3-position ignition switch for magneto ignition.  There may be a 6th terminal to ground the body of the switch.



1986 420-LSE Twin Automatic model 31-20KE01
1986 serial numbers that have shown up for the 31-20KE01

00002
00007 - Build date 1986 6140 May 20 Tuesday

00008

00020

00022
00025 - Build date 1986 6140 May 20 Tuesday
00027

00036

00037

00046

00047

00050

00051 - Build date 1986 6140 May 20 Tuesday
00061

00063

00064
00065 - Build date 1986 6140 May 20 Tuesday
00070 - Build date 1986 6140 May 20 Tuesday
00071 - Build date 1986 6140 May 20 Tuesday

00072
00074 - Build date 1986 6140 May 20 Tuesday
00077
00085

00086

00093 - Located in UK

00098

00099

00100

00105 - Build date 1986 6140 May 20 Tuesday

00117
00124 - Build date 1986 6140 May 20 Tuesday

00126
00132

00137
00143
00150

00154

00166

00169
00174 - Build date 1986 6140 May 20 Tuesday
00183 - Build date 1986 6140 May 20 Tuesday

00197

00198
