About This File
Tractor weight 680 lbs.
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

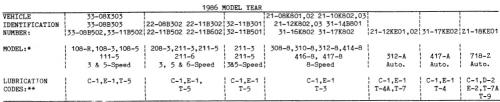

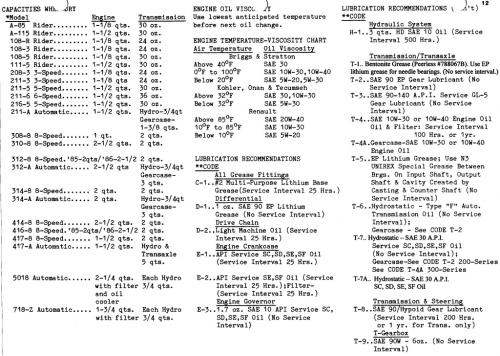

Lube chart SS
Details & Attachments
3 pages 117.32KB

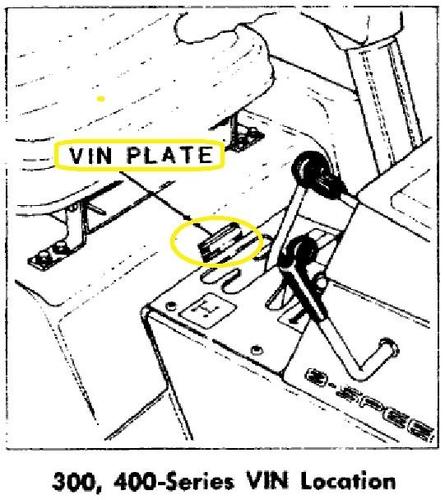

1986 417-8 Twin model 31-17K802
1986 serial numbers that have shown up for the 31-17K802
15910
16377 - May be 16877
Electric attachment lift standard equipment
Repair kits for 111273 linear actuator
Clutch assembly 110990
Cover tube 110987
Drive screw 110991
Front housing 110993
Intermediate gear set 110989
Motor 110992
Rear housing 11988
Sealing kit 110994
Link
