Tractor 1986 312-8 D&A LIPL SN.pdf

Sign in to follow this

gwest_ca

5 Screenshots

About This File

Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

Tractor weight 656 lbs.

Appears the early and late model numbers identify a change made to the differential side bearings

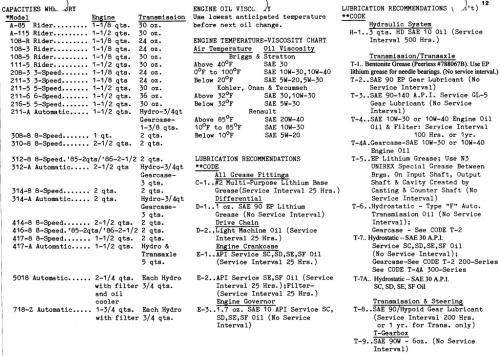

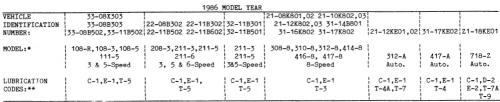

Lube chart SS



Details & Attachments
3 pages 116.93KB
1986 312-8 model 21-12K802
1986 serial numbers that have shown up for the 21-12K802
15771
16269
17176
17383
18162

18625
18751
18891
19042



-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"



Details & Attachments
3 pages 116.93KB
1986 312-8 model 21-12K803
1986 serial numbers that have shown up for the 21-12K803
15253



Link to Illustrated parts list, Service manual and Wiring






×
×
