About This File
IPL from Toro Master Parts Viewer
Wiring
20 pages 1.34MB

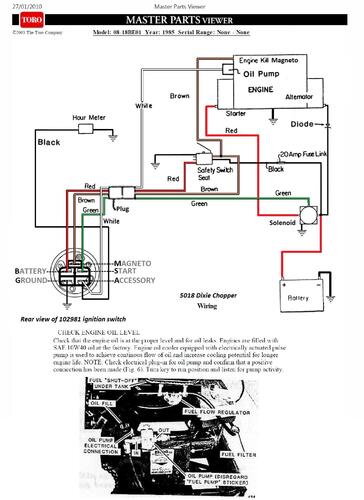

Wiring color pdf
1 page 541KB
Engine splash lubrication system uses an electric pulse fuel pump to move engine oil to an oil filter and cooler.
60105 filter may be a Dixie Chopper number - Kohler 12 050 01, Wix 51056, Wix 51215, Rotary 7916, Oregon 83-010, Stens 120-380

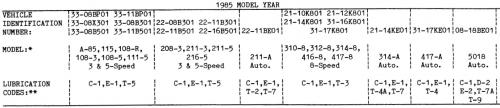

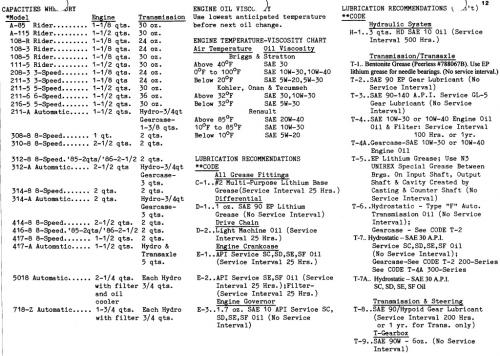

Lube chart SS
Details & Attachments
2 pages 104.43KB
Transmission drive belt 20256 - Gates replacement 6514BR (.66" x 41.125") - Toro IPL shows 40.8" length
Mower drive belt 30202 (5/8" x 79.1")
Mower spindle belt 30203 replaced by 113625 (5/8" x 105.75") (Gates 6584BR 21/32" x 104-1/4" raw edge)

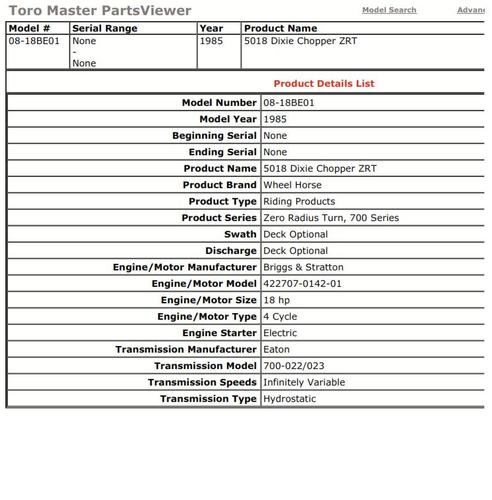

1985 5018 Dixie Chopper ZRT model 08-18BE01
