About This File
Operator manual #245-246
IPL
Wiring
16 pages 4.94MB
Dated 11/30/64

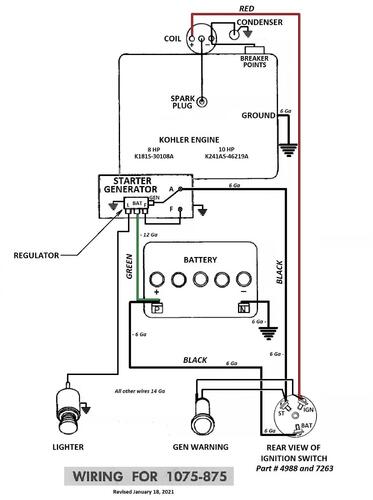

Wiring Color pdf
1 page 312KB
Short frame tractors
Tractor drive belt 6146 replaced by 8005 and both no longer available from Toro - (4L x 72" or 1/2" x 72")
Ignition switch 4988 (5/8"-32 threads) replaced by 7263 (9/16"-24 threads)
Starter/Generator belt
Original Wheel Horse 1583 nla Used on 6, 7, 8hp Kohler Starter generator {3Lx33" in belt charts is 3/8" x 33" but some applications use a shorter belt. Belt should have raw rubber sides for grip.}
3V315 Gates .38"x31.5"
3V315 Napa .38"x31.5"
Kohler #231605 Starter generator belt Replaces 232613 [.41"x32.08" 36 degree] PSB #061 Should use raw edge belt
7315 Gates .41"x32.08" 36 degree
25-7315 Napa .41"x32.08" 36 degree
Small Block Kohler Napa # 25-7320 .41" wide x 32.5" long Side angle 36 degrees Cross section HC41
Big Block Kohler Napa # 25-7345 .41" wide x 35.3" long side angle 37 degrees Cross section HC41

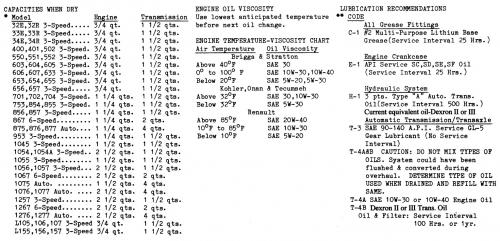

Lube chart SS
Details & Attachments
3 pages 118.48KB

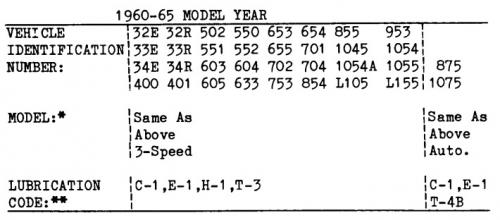

1965 model 875 - Uses the 5052 hydro transmission identified at Toro as 3100077
1965 serial numbers that have shown up for the 875
130994
131002
131097
131161
131249
131314
131686
132052
132215
133019 - May be 138019
142227
142327
142666 - White instead of red
142729
142812
142881
143048
------------------------------------------------------------------------------
Tractor drive belt 6146 replaced by 8005 and both no longer available from Toro - (4L x 72" or 1/2" x 72")
Ignition switch 4988 (5/8"-32 threads) replaced by 7263 (9/16"-24 threads)
Starter/generator belt
Kohler 10, 12hp 235262
Wheel Horse 1593 (3L x 34.4") - nla (Gates replacement 6735 3/8" x 35" 38 degree)
7345 Gates .410" x 35.09" 36 degree
25-7345 Napa .410" x 35.09" 36 degree
Details & Attachments
3 pages 117.97KB

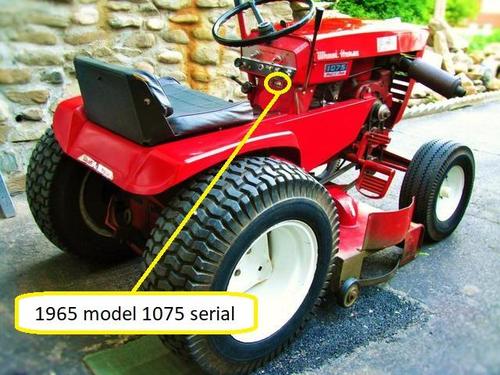

1965 model 1075 - Uses the 5052 hydro transmission identified at Toro as 3100077
1965 serial numbers that have shown up for the 1075
126828
130336
130829
143268
143408
