Engine Kohler Magnum M 8 M10 M12 M14 M16 OM.pdf

Sign in to follow this

gwest_ca

3 Screenshots

About This File

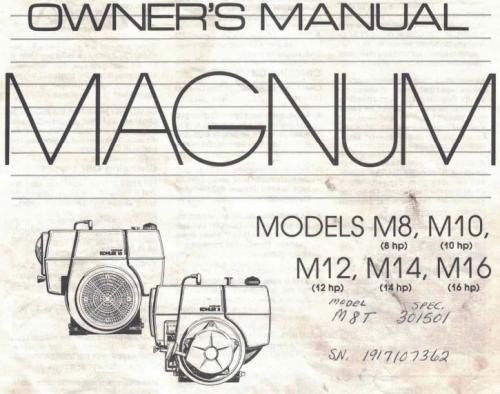

Operator manual #TP-2200-A

8 pages 6158KB

Includes M10



Operator manual #TP-2200-F (Don't know why the 10hp is not included unless it was no longer produced at the time of printing)

16 pages 492.07KB

Dated 7/85 Revised 12/01



M8 (8hp or 6KW)

1986 308-8 model 21-08K801 - Using M8S-301511

1986 308-8 model 21-08K802 - Using M8S-301511

1987 308-8 model 21-08K803 - Using M8S-301511

1988 308-8 model 21-08K804 - Using M8S-301511

The following were supplied to Wheel Horse according to Kohler records

M8-301511 - 1986, 1987, 1988



M10 (10hp or 7.5KW)

1987 310-8 model 21-10K804 - Using M10S-461521

1988 310-8 model 21-10K805 - Using M10S-461521

1989 310-8 model 21-10K806 - Using M10S-461533 - (M10S-461521 at Toro)

1990 310-8 model 31-10K801 - Using M10S-461533 - (M10S-461521 at Toro)

1991 310-8 model 31-10K802 - Using M10S-461533 - (M10S-461521 at Toro)

1992 310-8 model 31-10K803 - Using M10S-461545 - (M10S-46154 at Toro is wrong)

1993 310-8 model 73320 - Using M10S-461545 - (M10S-46145 at Toro is wrong)

The following were supplied to Wheel Horse according to Kohler records

M10-461521 - 1987, 1988, 1989, 1990, 1991

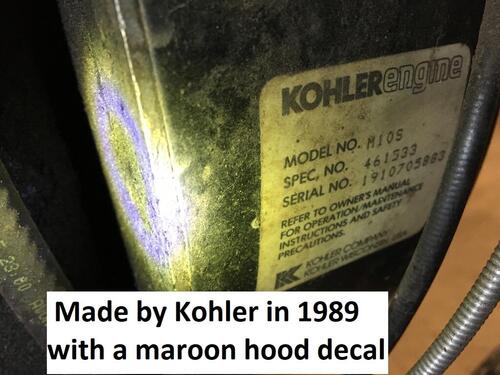

M10-461533 - One found with 1989 Kohler build date and maroon hood decal.

M10-461545 - 1992, 1993, ?



M12 (12hp or 9KW)

1987 312-8 model 21-12K804 - Using M12S-471527

1987 312-A model 21-12KE03 - Using M12S-471527

1988 312-8 model 21-12K805 - Using M12S-471527

1988 312-8e model E1-12K801 - Using M12S-471546

1989 312-8 model 21-12K806 - Using M12S-471527

1989 312-8e model E1-12K802 - Using M12S-471546

1990 312-8 model 31-12K801 - Using M12S-471527

1990 312-8e model R1-12K801 - Using M12S-471546

1990 312-8e model R1-12K802 - Using M12S-471527

1990 312-H model 31-12KE01 - Using M12S-471527

1991 312-8 model 31-12K802 Serial 1000001-1999999 - Using M12S-471527

1991 312-8e model R1-12K803 Serial 1000001-1999999 - Using M12S-471527 - A guess

1991 312-H model 51-12KE01 Serial 1000001-1999999 - Using M12S-471527 (M12S-471521 wrong at Toro)

1992 312-8 model 31-12K804 Serial 2000001-2999999 - Using M12S-471527

1992 312-8e model R1-12K804 Serial 2000001-2999999 - Using M12S-471527

1992 312-H model 51-12KE02 Serial 2000001-2999999 - Using M12S-471527 (M12S-471521 wrong at Toro)

1993 312-8e model 73380 Serial 3900001-3999999 - Using M12S-471527

1994 312-8 model 73362 Serial 4900001-4999999 - Using M12S-471527

1994 312-8e model 73380 Serial 4900001-4999999 - Using M12S-471527

1995 312-8 model 73362 Serial 5900001-5999999 - Using M12S-471527

1996 312-8 model 73362 Serial 6900001-6999999 - Using M12S-471527

1996 312-8 model 73363 Serial 6900001-6999999 - Using M12S-471527

1997 312-8 model 73363 Serial 7900001-7999999 - Using M12S-471527

The following were supplied to Wheel Horse according to Kohler records

M12-471527 - 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997

M12-471546 - 1988, 1989, 1990



M14 (14hp or 10.5KW)

1987 414-8 model 31-14K802 - Uses M14S-601524

1988 414-8 model 31-14K803 - Uses M14S-601540

1989 414-8 model 31-14K804 - Uses M14S-601540

1993-1996 314-8 model 73400 - Uses M14S-601559

1993-1996 314-H model 73401 - Uses M14S-601559

1996-1997 314-8 model 73402 - Uses M14S-601559

1996-1997 314-H model 73403 - Uses M14S-601559

The following were supplied to Wheel Horse according to Kohler records

M14-601524 - 1987

M14-601540 - 1988, 1989,

M14-601559 - 1993, 1994, 1995, 1996, 1997



M16 (16hp or 11.9KW)

1987 416-8 model 31-16K803 - Uses M16S-711523

1988 416-8 model 31-16K804 - Uses M16S-711523

The following were supplied to Wheel Horse according to Kohler records

M16-711523 - 1987, 1988




×
×
