Tractor 1981 GT-2500 8-Speed D&A OM Wiring TIPL SN.pdf

Sign in to follow this

grantave671

7 Screenshots

About This File

Operator manual #810247R1
Wiring
21 pages 4.69MB

IPL from Toro Master Parts Viewer
39 pages 3.25MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.



Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

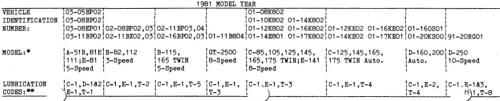

Lube chart SS


Details & Attachments
3 pages 119.02KB

1981 GT-2500 8-Speed model 01-11B804 - Anniversary Special

1981 serial numbers that have shown up for the 01-11B804
001008
001058
001068
001075
001078
001089
002109
021445 - Build date 1981 1058 February 27 Friday
021792

021806 - Build date 1981 1070 March 11 Wednesday

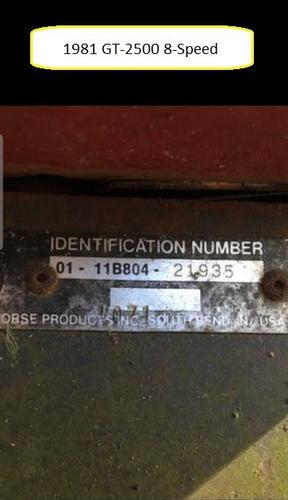

021935 - Build date 1981 1071 March 12 Thursday

022417 - Build date 1981 1077 March 18 Wednesday

022430 - Build date 1981 1077 March 18 Wednesday
022741 - Build date 1981 1070 March 11 Wednesday - (Serial or date may be wrong)
023189 - Build date 1981 1085 March 26 Thursday

023219

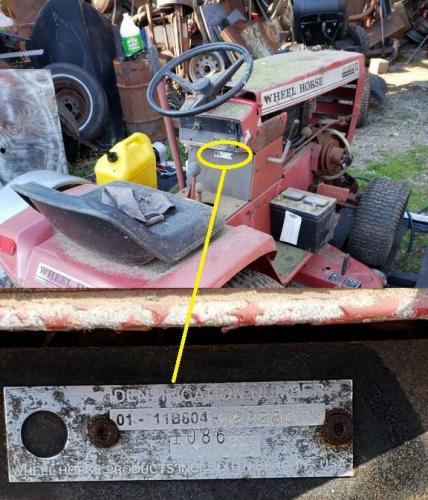

023280 - Build date 1981 1086 March 27 Friday
023468 - Build date 1981 1089 March 30 Monday

023492

Original IPL #810256R1

Links

For transmission service manual see

For electrical service manual see

For engine OM IPL see



25 year silver anniversary model




×
×
