About This File
IPL from Toro Master Parts Viewer
8 pages 421.40KB
Drive belt 106533 (1/2" x 40.06")
Spindle belt 106751 (1/2" x 80.5")

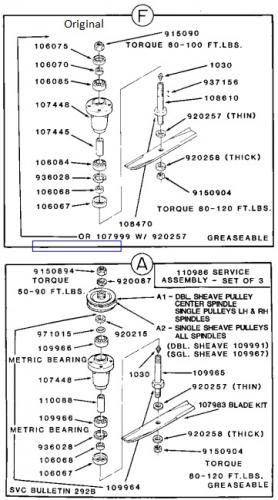

Mower spindle assemblies could be A2, F or Z
For A2 see service bulletin 221B
107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)
Mower Rotary 1980 36in SD model 05-36XS01
1980 serial numbers that have shown up for the 05-36XS01
00008065 - Build date 1979 9289 October 16 Tuesday
Mower Rotary 1981 36in SD model 05-36XS01
