About This File

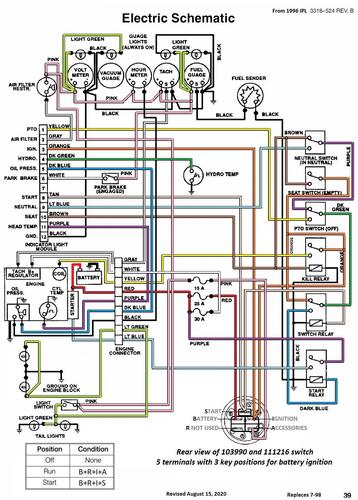

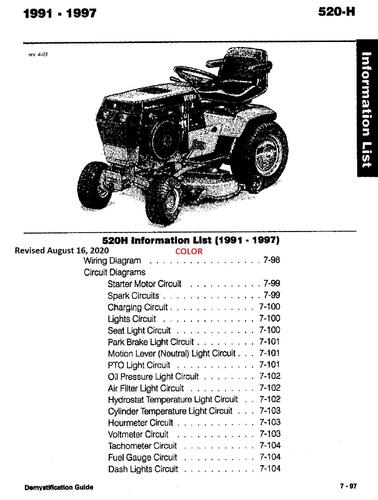

Detailed wiring from the Demystification Guide #492-4509 Color pdf
8 pages 3.1MB
p7-97 to p7-104
Suspect the 113476 is a typo and should be 113467 tachometer
Mistake in 492-4509 manual - The 113476 and 78-0060 tachometer does not get it's signal on the grey wire from the B+ terminal of the voltage regulator. This is also incorrect on page 3-10 describing the tachometer's operation.
The grey wire comes from one of the regulator's AC terminals.
1995 520-H model 73520 5900001-5999999 - Export model 520-He
