About This File

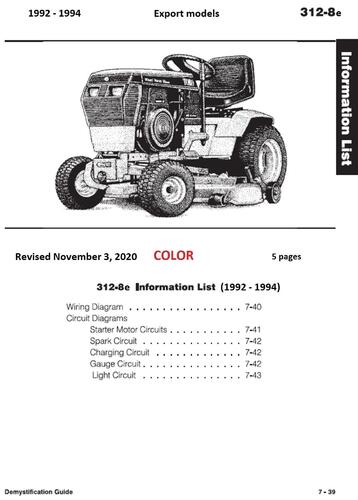

Detailed wiring from the Demystification Guide #492-4509
Pages p7-39e to 7-43e
5 pages 1.5MB
We do not have an original diagram.

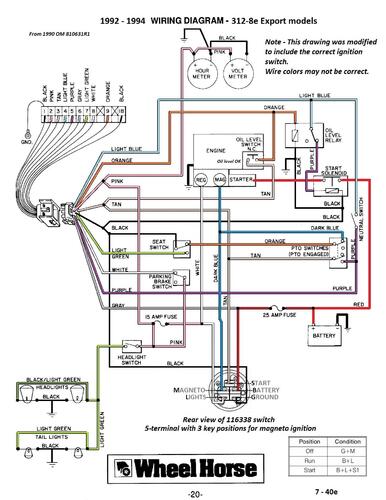

Illustration modified to include the correct ignition switch.
Wire colors may not be correct
1994 312-8 model 73380 Serial 4900001-4999999 - Export model 312-8e
