About This File
Operator manual #3314-557 for model 56132
Wiring
36 pages 2.41MB
Illustrated parts list for model 56132 - Includes B&S engine ipl #3314-586
20 pages 4.12MB
Addendum #3314-693 for model 56132
1 page 62.15KB
Transmission drive belt 67-0900 - (A x 40.0" or 1/2" x 40")
Mower drive and spindle belt 67-1390 replaced by 98-0710 (1/2" x 51")

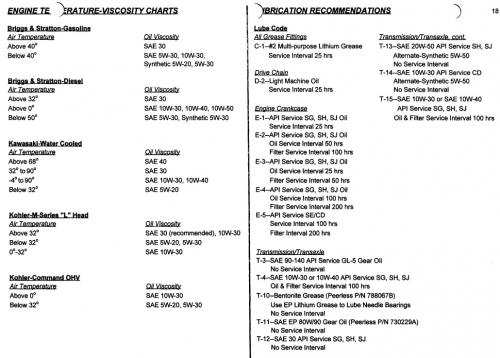

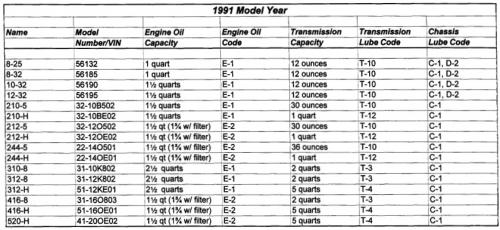

Lube chart SS
Details & Attachments
2 pages 110.70KB model 56132
1991 8-25 Rear Engine Rider model 56132 Serial 1000001-1999999 - Listed as model 825 @ Toro - Electric start
1991 serial numbers that have shown up for the 56132
1002501
-----------------------------------------------------------------------------------------------------------------------------

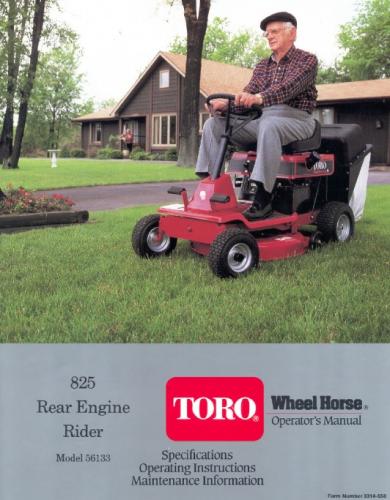

Operator manual #3314-558 for model 56133
Wiring
36 pages 3.04MB
Illustrated parts list #3314-587 for model 56133 - Includes B&S engine 191707-6021-01 ipl
20 pages 4.12MB
Details & Attachments
2 pages 107.79KB model 56133
28-7890 Interlock module #492-4509
1 page 288.80KB
Transmission drive belt 67-0900 - (A x 40.0" or 1/2" x 40")
Mower drive and spindle belt 67-1390 replaced by 98-0710 (1/2" x 51")
1991 8-25 Rear Engine Rider model 56133 Serial 1000001-1999999 - Export model - Electric start
1991 8-25e Rear Engine Rider model 56133 Serial 1000001-1999999 - Export model - Electric start
