About This File
IPL from Toro Master Parts Viewer
45 pages 3.20MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Includes IPL for 42" SD mower deck model 05-42MS02
Tractor drive belt 107939 replaced by 93-9809 - (HB x 83.5" or 5/8" x 83-1/2")
Mower drive belt 102742 replaced by 94-2501 (1/2" x 103")
Mower drive belt with front mower carrier and single cylinder engine 109956 (1/2" x 102")
Mower drive belt with front mower carrier and twin cylinder engine 102742 replaced by 94-2501 (1/2" x 103")
Mower spindle belt 6738 (1/2" x 86")

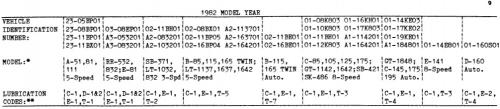

Lube chart SS
Details & Attachments
3 pages 119.45KB
1982 GT-1642 Twin 8-Speed model A1-164201
1982 serial numbers that have shown up for the A1-164201
10085 - Build date 1982 2085 March 26 Friday
Original OM #810248R1
Original IPL #810286R1
Links
For engine OM and IPL see
For transmission service manual see
For electrical service manual see
