About This File
IPL from Toro Master Parts Viewer
41 pages 2.32MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

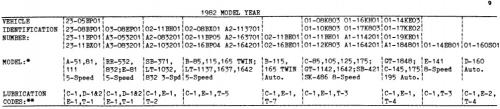

Lube chart SS
Details & Attachments
3 pages 113.80KB
Transmission drive belt 9430 - (4L x 36.31" or 1/2" x 36.31")
Mower drive belt 108491 (1/2" x 67")
32" side discharge - 107277 blade replaced by 106163 2-blade set (5/8" x 3/4" double-D hole)
1982 A-111 5-Speed RER model 23-11BP01
--------------------------------------------------------------------------------------------------------------------------------------------------------------
IPL from Toro Master Parts Viewer
41 pages 2.32MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Details & Attachments
2 pages 112.75KB
Transmission drive belt 9430 - (4L x 36.31" or 1/2" x 36.31")
Mower drive belt 108492 (1/2" x 57.5")
Spindle belt 8411 (1/2" x 76.94")
36" side discharge - 107982 3-blade set replaces 107435 left and right blades (12-1/8") and 107436 center blade (14-1/8") (Hole 3/4" round)
1982 A-111 5-Speed RER model 23-11BX01
Original mower OM #810260R1
Original tractor OM #810266R1
Original tractor IPL #810270R1
Links
For engine OM and IPL see
For electrical service manual see
For Peerless transmission 724A IPL see
For Stewart differential patent see
