Tractor 1982 A- 81 5-speed RER D&A TIPL sn.pdf

Sign in to follow this

gwest_ca

4 Screenshots

About This File

IPL from Toro Master Parts Viewer
35 pages 2.00MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

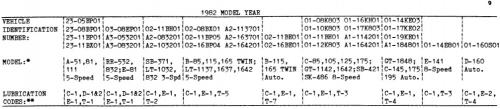

Lube chart SS


Details & Attachments
3 pages 114.35KB



Transmission drive belt 9430 - (4L x 36.31" or 1/2" x 36.31")


Mower drive belt 108491 (1/2" x 67")



107277 blade replaced by 106163 2-blade set (5/8" x 3/4" double-D hole)

1982 A-81 5-Speed RER model 23-08BP01

Original mower OM #810260R1
Original tractor OM #810266R1
Original tractor IPL #810270R1

Links

For engine OM and IPL see

For electrical service manual see

For Peerless transmission 724A IPL see

For Stewart differential patent see




×
×
