About This File
IPL from Toro Master Parts Viewer
31 pages 1.81MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

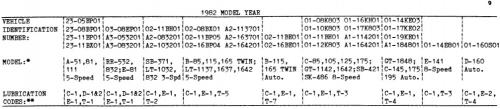

Lube chart SS
Details & Attachments
2 pages 109.28KB
Transmission drive belt 9430 - (4L x 36.31" or 1/2" x 36.31")
Mower drive belt 108491 (1/2" x 67")
107277 blade replaced by 106163 2-blade set (5/8" x 3/4" double-D hole)
1982 A-51 5-Speed RER model 23-05BP01
Original mower OM #810260R1
Original tractor OM #810266R1
Original tractor IPL #810270R1
Links
For engine OM and IPL see
For electrical service manual see
For Peerless transmission 724A IPL see
For Stewart differential patent see
