About This File
IPL from Toro Master Parts Viewer
43 pages 2.81MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Original OM #810287R1
Original IPL #810290R1

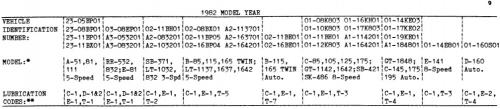

Lube chart SS
The SK-486 is wired like the 1981 C-Series tractors
Details & Attachments
3 pages 117.75KB
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

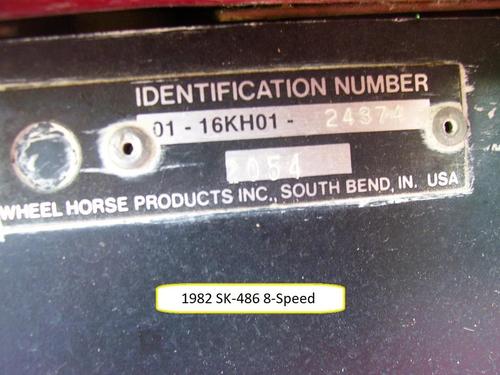

1982 SK-486 8-Speed model 01-16KH01
1982 serial numbers that have shown up for the 01-16KH01
24032 - Build date 1982 2051 February 20 Saturday
24170 - Build date 1982 2053 February 22 Monday
24197- Build date 1982 2053 February 22 Monday
24245 - Build date 1982 2055 February 24 Wednesday (Possible it should be 2053)
24248 - Build date 1982 2053 February 22 Monday
24288 - Build date 1982 2053 February 22 Monday
24297 - Build date 1982 2053 February 22 Monday
24308 - Build date 1982 2054 February 23 Tuesday [2284]
24374 - Build date 1982 2054 February 23 Tuesday
24421 - Build date 1982 2054 February 23 Tuesday
24458 - Build date 1982 2054 February 23 Tuesday
24642
24747 - Build date 1982 2086 March 27 Saturday [M]
Links
For transmission service manual see
For electrical service manual see
