About This File
IPL Wiring from Toro Master Parts Viewer
42 pages 2.52MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

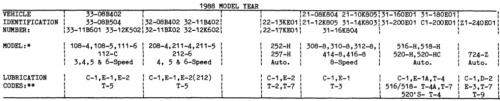

Lube chart SS
Details & Attachments
2 pages 107.66KB
Tractor drive belt 110364 replaced by 113105 - (A x 33.10" or 1/2" x 33.1")
Mower drive belt 112114 - (1/2" x 40.4")
Mower spindle belt 114567 - (1/2" x 47.91")
110397 and 111144 blade replaced by 112560 (3/4" center hole)
1988 108-5 RER model 33-08B504
1988 serial numbers that have shown up for the 33-08B504
35731
35977
On the Belgium list
