Tractor 1986 108-5 RER D&A TIPL sn.pdf

Sign in to follow this

gwest_ca

5 Screenshots

About This File

IPL from Toro Master Parts Viewer
35 pages 2.33MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

On the Belgium list



Tractor drive belt 110364 replaced by 113105 - (A x 33.10" or 1/2" x 33.1")


Mower drive belt 110376 (1/2" x 38.5")
Mower spindle belt 110420 replaced by 114567 (1/2" x 47.91")



110397 and 111144 blade replaced by 112560 (3/4" center hole)

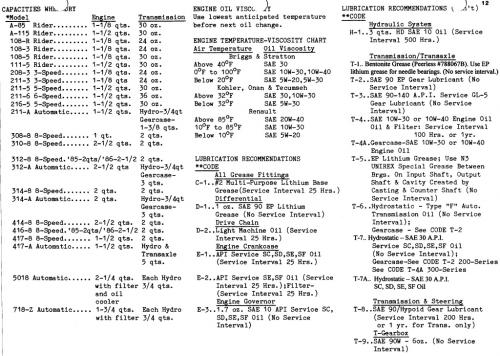

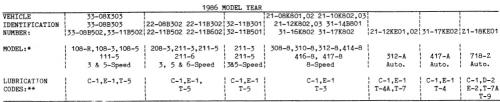

Lube chart SS


Details & Attachments
2 pages 109.56KB

1986 108-5 model 33-08B502




×
×
