About This File
IPL from Toro Master Parts Viewer
42 pages 2.65KB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Listed as 1981 model @ Toro but believe it should be 1985
Not on Belgium list

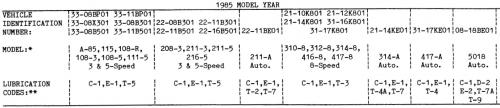

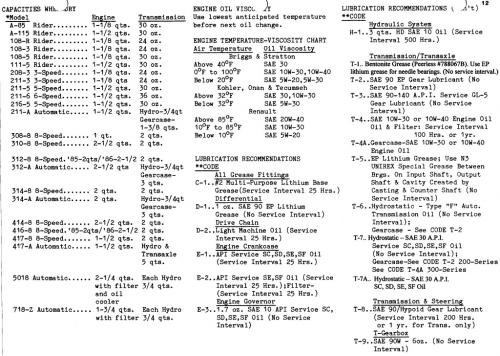

Lube chart SS
Details & Attachments
2 pages 103.94KB
Not 100% sure these belts are correct but listed by Toro
Mower drive belt 112114 (1/2" x 40.4")
Mower spindle belt 110420 replaced by 114567 (1/2" x 47.91")
110397 and 111144 blade replaced by 112560 (3/4" center hole)
1985 108-3 model B3-08B302
1985 108-3e model B3-08B302
