About This File
IPL from Toro Master Parts Viewer
50 pages 3.54MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

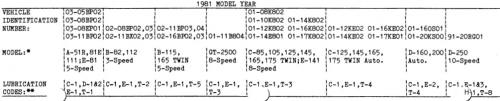

Lube chart SS
Details & Attachments
4 pages 121.63KB
Transmission drive belt 108502 - (HB/5L x 83" or 5/8" x 83")
1981 C-175 Twin Auto model 01-17KE01

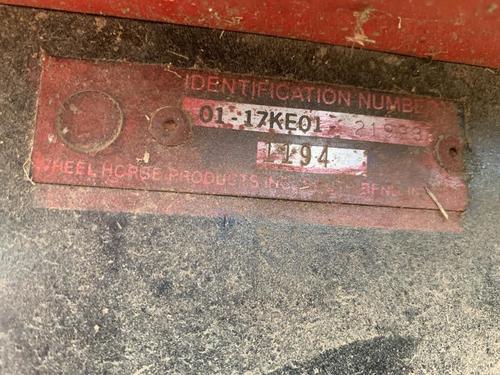

1981 serial numbers that have shown up for the 01-17KE01
016782 - Could be 1980
021013 - Build date 1980 0338 December 03 Wednesday
021229 - Build date 1980 0342 December 07 Sunday
021287 - Build date 1980 0343 December 08 Monday
021501
021724 - Build date 1981 1139 May 19 Tuesday
021868 - Build date 1981 1170 June 19 Friday
021923 - Build date 1981 1194 July 13 Monday
021993 - Build date 1981 1093 April 03 Friday (Too late or serial is wrong?)
022038 - Build date 1981 1198 July 17 Friday
022100 - Build date 1981 1202 July 21 Tuesday
022113 - Build date 1981 1201 July 20 Monday
Original OM #810185R1 - Suspect this should be #810233R1
Original IPL # 810214R1
Links
For tractor operator manual see http://www.wheelhors...ng-810233r1pdf/
For detailed wiring diagrams see
For Eaton service manual see
For Toro Hydraulic Productivity series see
For lift valve and cylinder service manual see
