About This File
IPL from Toro Master Parts Viewer
48 pages 3.25MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
Note
The online 1980 and 1981 tipl flags "some C-85 and C-105 models as using a 937097 #15 Woodruff key 1/4" x 1" at the rear axle/wheel hub". No mention of using a different axle so something is wrong.

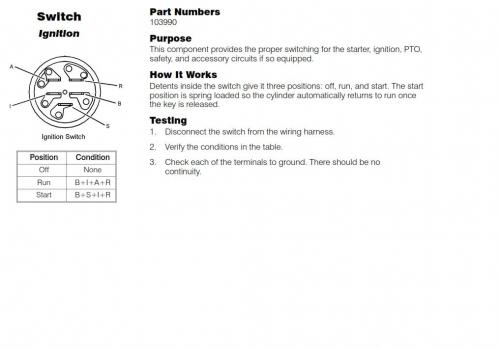

Ignition switch
1 page 37KB

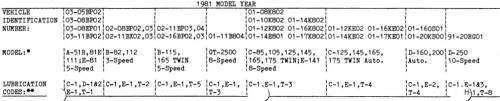

Lube chart SS
Details & Attachments
3 pages 118.58KB
1981 C-105 8-Speed model 01-10K802
1981 serial numbers that have shown up for the 01-10K802
000232
001195
019984 - Build date 1980 0233 August 20 Wednesday
021062
021880 - Build date 1981 1175 June 24 Friday
Original OM #810185R1 - This is the 1980 C-Series Auto manual - Possibly should be #810233R1
Original IPL # 810214R1 - This is the 1980 C-Series Auto manual
Links
For tractor operator manual see http://www.wheelhors...ng-810233r1pdf/
For transmission service manual see
For electrical service manual see
