About This File
IPL from Toro Master Parts Viewer
48 pages 3.25MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
Note
The online 1980 and 1981 tipl flags "some C-85 and C-105 models as using a 937097 #15 Woodruff key 1/4" x 1" at the rear axle/wheel hub". No mention of using a different axle so something is wrong.

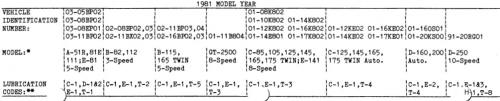

Lube chart SS
Details & Attachments
3 pages 117.50KB
1981 C-85 8-Speed model 01-08K802 - Incorrectly named a C-81 @ Toro
1981 serial numbers that have shown up for the 01-08K802
017959 - Build date 1980 0154 June 02 Monday
018523
019737 - Build date 1980 0290 October 19 Thursday
019813 - Build date 1980 0345 December 10 Wednesday
019902
021130 - Build date 1980 0294 October 20 1980 - Serial or date looks wrong
021573 - Build date 1981 1174 June 23 Tuesday
021791 - Build date 1981 1195 July 14 Tuesday
022158 - Build date 1981 1278 October 05 Monday [278]
Original OM #810146R1 - This is the 1980 manual - Possibly should be #810233R1
Original IPL # 810214R1 - This is the 1980 manual
Links
For tractor operator manual see http://www.wheelhorseforum.com/files/file/3649-tractor-1981-c-series-om-wiring-810233r1pdf/
For transmission service manual see
For electrical service manual see
