About This File
IPL from Toro Master Parts Viewer
43 pages 3.35MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

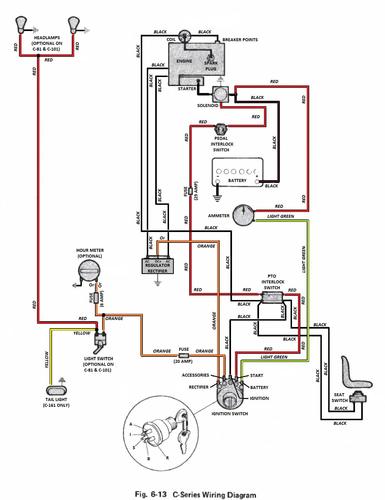

Wiring from operator manual pdf Color
1 page 324KB

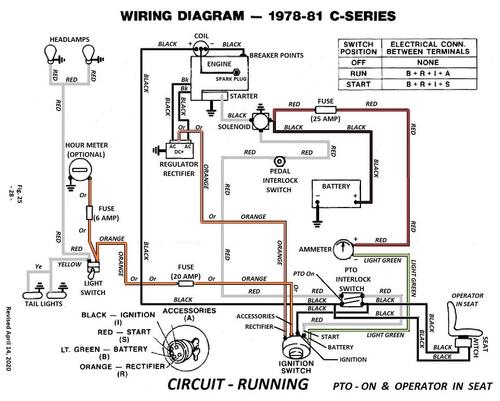

1978 to 1981 Wheel Horse C-Series (with Kohler) Wiring Demystification pdf
4 pages 1.4MB
Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379
Transmission drive belt 78-7100 replaced by 7473 - (HB x 81.9" or 5/8" x 81.9")
Lube chart SS
Details & Attachments
4 pages 122.08KB
1978 C-141 8-Speed model 81-14K801
1978 serial numbers that have shown up for the 81-14K801
000894
003504 - Build date 1978 8017 January 17 Tuesday
009030
009073
009133
009210 - Build date 1978 8082 March 23 Thursday
009219 - Build date 1978 8082 March 23 Thursday
011217 - Build date 1978 8096 April 06 Thursday
013780 - Build date 1978 8136 May 16 Tuesday
164518 - Made in Belgium - Located in the UK
165051 - Made in Belgium
Links
For tractor service manual see
For electrical service manual see
For transmission service manual see low resolution
For transmission service manual see high resolution
