About This File
Illustrated parts list from Toro Master Parts Viewer
43 pages 3.35MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

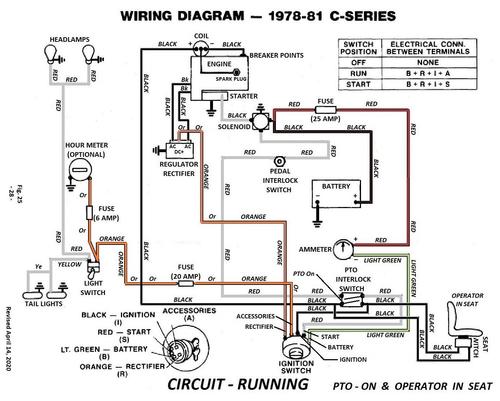

1978 to 1981 Wheel Horse C-Series (with Kohler) Wiring Demystification pdf
4 pages 1.4MB
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379
Lube chart SS
Details & Attachments
4 pages 122.00KB
1978 C-121 8-Speed model 81-12K801
1978 serial numbers that have shown up for the 81-12K801
000343 - Build date 1978 8004 January 04 Wednesday [6004]
015108 - Build date 1978 8156 June 05 Monday - looks wrong
016188 - Build date 1978 8103 April 13 Thursday
020945 - Build date 1978 8191 July 10 Monday

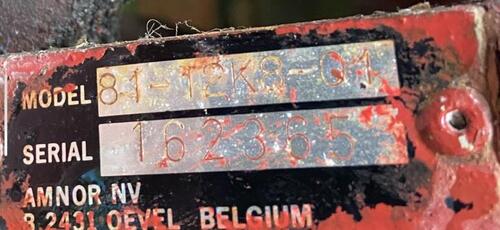

162365 - Made in Belgium - Located in UK - G.D. Mountfield serial 9054
162413 - Made in Belgium - Located in Norway
163675 - Made in Belgium - Located in UK
Links
For tractor service manual see
For electrical service manual see
For transmission service manual see low resolution
For transmission service manual see high resolution
