About This File
IPL from Toro Master Parts Viewer
43 pages 3.35MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

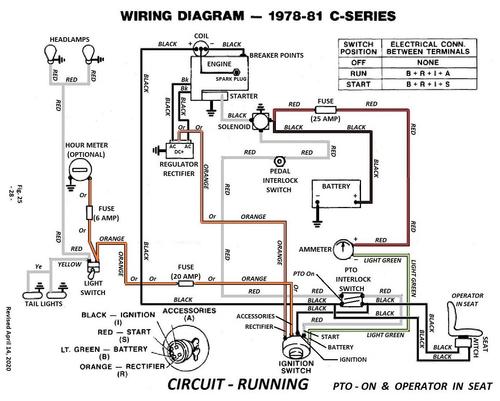

1978 to 1981 Wheel Horse C-Series (with Kohler) Wiring Demystification Revised Color pdf
4 pages 1.4MKB
Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379
Transmission drive belt 78-7100 replaced by 7473 - (HB x 81.9" or 5/8" x 81.9")
Lube chart SS
Details & Attachments
4 pages 120.13KB
1978 C-101 8-Speed model 81-10K801
1978 serial numbers that have shown up for the 81-10K801
000251
002484 - Build date 1977 7351 December 17 Saturday
002705
005321 - Build date 1978 8020 January 20 Friday
005323
013060 - Build date 1978 8083
010649 - Build date 1978 8100 April 10 Monday [100]
010709 - Build date 1978 8101 April 11 Tuesday
013414 - Build date 1978 8109 April 19 Wednesday - May be 8108 - Duplicate serial number
014426 - Build date 1978 8129 May 09 Tuesday
014575
014586
014747
9123426 - Looks wrong - Located in Wales - Made in USA
Links
For tractor service manual see
For electrical service manual see
For transmission service manual see low resolution
For transmission service manual see high resolution
