About This File
IPL from Toro Master Parts Viewer
43 pages 3.35MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

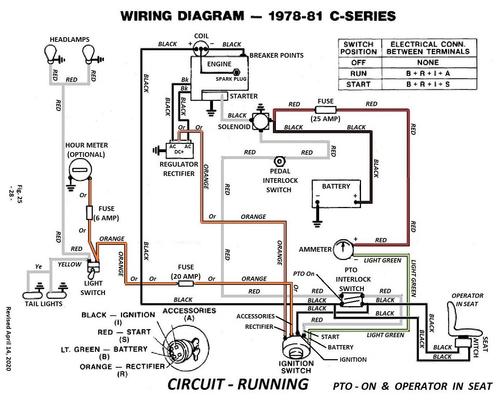

1978 to 1981 Wheel Horse C-Series (with Kohler) Wiring Demystification revised Color pdf
4 pages 1.4MB
Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379
Transmission drive belt 78-7100 replaced by 7473 - (HB x 81.9" or 5/8" x 81.9")
Lube chart SS
Details & Attachments
3 pages 118.29KB
1978 C-81 8-Speed model 81-08K801
1978 serial numbers that have shown up for the 81-08K801
000753
001781 - Build date 1977 7348 December 14 Wednesday [8349 looks wrong]
001808 - Build date 1977 7348 December 14 Wednesday [8348 looks wrong]
005289 - Build date 1978 8019 January 19 Thursday
006864
006964 - Build date 1978 8052 February 21 Tuesday
007037 - Build date 1978 8053 February 22 Wednesday
007254 - Build date 1978 8076 March 8 Wednesday
007257 - Build date 1978 8067 March 8 Wednesday
007776 - Build date 1978 8070 March 11 Saturday
0077xx - Build date 1978 8079 March 20 Monday (077 posted)
009282 - Could be a 1979 model
010193 - Build date 1978 8093 April 3 Monday
012697 - Made in Belgium with Mountfield plate so 12697 may be Mountfield number - Located in the UK
Links
For tractor service manual see
For electrical service manual see
For transmission service manual see low resolution
For transmission service manual see high resolution
