About This File

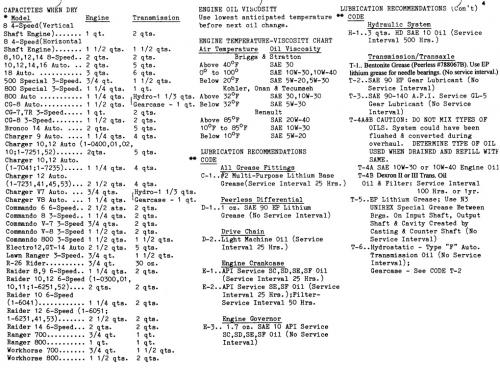

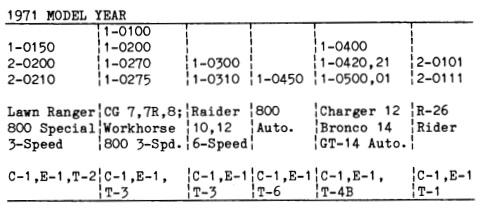

Lube chart SS

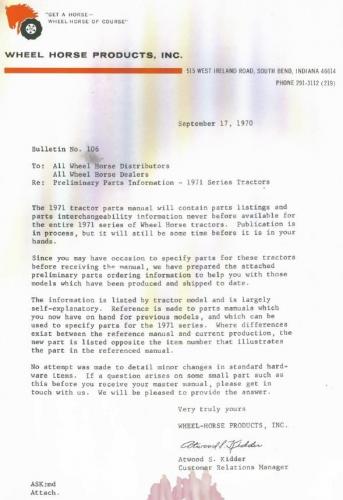

Preliminary parts list changes for the Charger 12 model 1-0400
2 pages 287KB
We also have the 1971 tractor parts manual that followed
Details & Attachments
4 pages 118.01KB
Wiring Color pdf
1 page 401KB

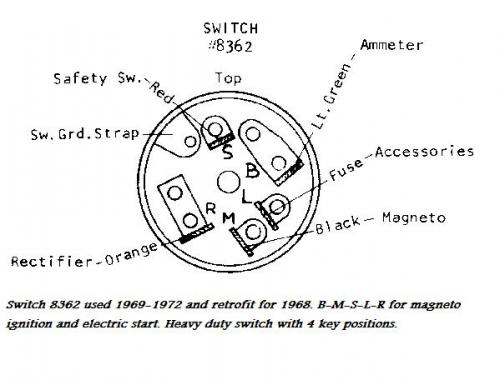

Terminals on 8362 magneto ignition switch may not be identified
1 page 126KB
1971 Charger 12 model 1-0400 - Uses breakerless magneto ignition
The 1971 tractor model number ID plates were stamped with a 6th digit. Subtract 5 from that 6th digit to get the model year. 6-5=1=1971. You will see 6, 7, 8 and 9 on the attachment ID plates also representing 1971, 1972, 1973 and 1974.
1971 serial numbers that have shown up for the 1-0400
119553 - Made in Belgium - Located in Devon, UK
750271 - Model 1-0400-6
750329
750447
750457 - Model 1-0400-6
767832 - Model 1-0400-6
767837
767971
789361
789383
811528
