Early production used Kohler K301S-4712B with starter/generator and battery ignition
The "Details" page is for early production - the tractor model number was the same

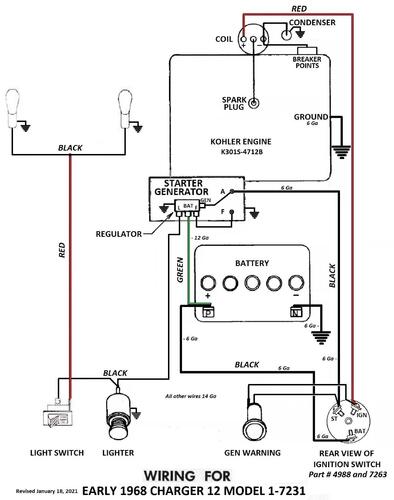

The 1967 wiring should be the same for the 1968 early production
Wiring Color pdf
1 page 346KB
Starter/generator belt
Kohler 10hp, 12hp - 235262 (7345 Gates .410" x 35.09" 36 degree) (25-7345 Napa .410" x 35.09" 36 degree)
Wheel Horse 1593 (3L x 34.4") - nla (Gates replacement 6735 3/8" x 35" 38 degree)
(Late production used Kohler K301S-47147B with Bendix starter, 10 amp alternator and magneto ignition with points and condenser)
Wiring and ignition switch is completely different on the two
.
Tractor drive belt # 7478 replaces # 4535 - (HB/5L x 84.22" or 5/8" x 84.22")

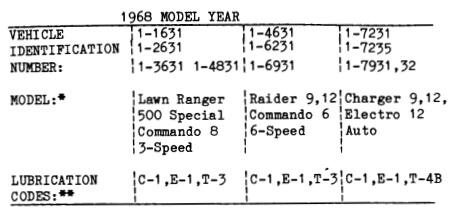

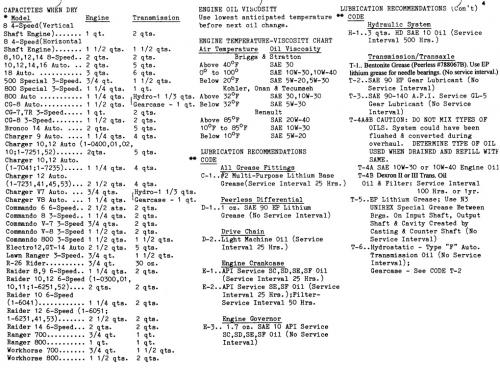

Lube chart SS
1968 Charger 12 model 1-7231 - Early production

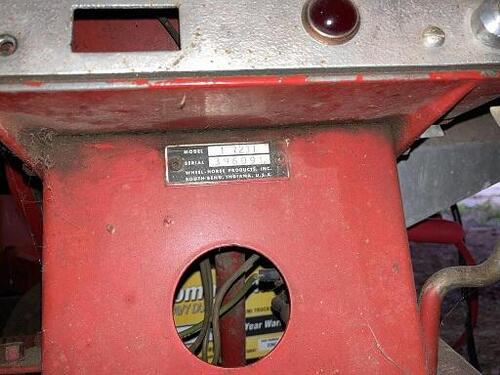

1968 serial numbers that have shown up for the early production 1-7231
395880 - Kohler K301S-4712B with starter/generator and battery ignition
395922 - Model number a guess
396003
396091
396240
396510
420619
420675
