About This File

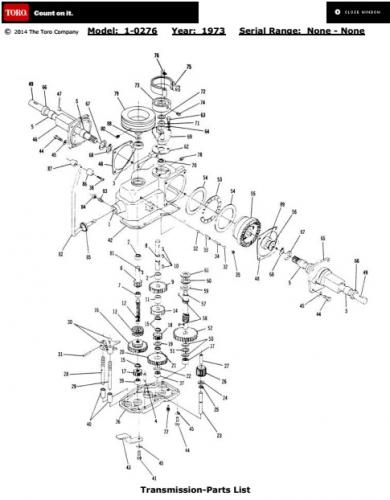

PL from Toro Master Parts Viewer
8 pages 509.62KB
Vertical shaft engine
Transmission drive belt 8133 (4L x 73.8" or 1/2" x 73.8")

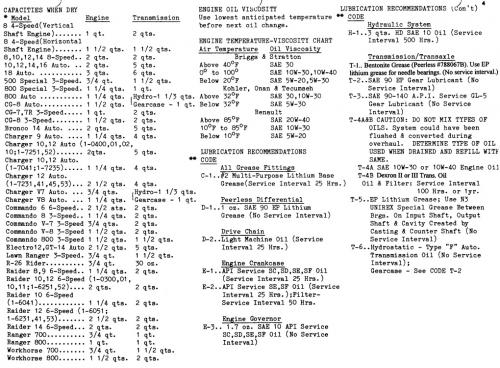

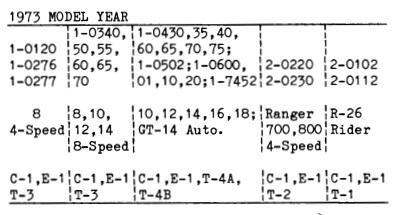

Lube chart SS
Details & Attachments - Not available
1973 8hp 4-Speed model 1-0274 - Not listed @ Toro but in the belt charts
1973 serial numbers that have shown up for the 1-0274
0908861 - Model 1-0274-8 - Found using vertical shaft engine 190707 type 0887-01 code 75012212
0908875 - Model 1-0274-8
Details & Attachments
3 pages 111.91KB
1973 8hp 4-Speed model 1-0276
1973 serial numbers that have shown up for the 1-0276
0907551- Model 1-0276-8
Details & Attachments
3 pages 111.60KB
1973 8hp 4-Speed model 1-0277
1973 serial numbers that have shown up for the 1-0277
0908603 - Model 1-0277-8
