IPL Wiring A-7136

7 pages 2.1MB


TPL 2 pages
2 pages 150.47KB



Wiring Revised pdf

1 page 219KB



Mower deck model may have been RM-112

Tractor drive belt for 32E and 32R #1576 replaced by 9691 - 1/2" x 70"
Mower drive belt 1587 (4Lx43" or 1/2" x 43")



8777 2-blade set replaces 3719, 7760 and 7909 left blades and 3718, 7761 and 7908 right blades for 32" width of cut mower deck



Ignition switch for 32E is 4987 replaced by 101482



Listed in the attachment list but little else known

Seat back rest BR-122

Speed reducer SR-62

Tire chains TC-8

Wheel disc WD-4 (80521 or 8-0521)

Front wheel weight WF-60 (81211 or 8-1211)

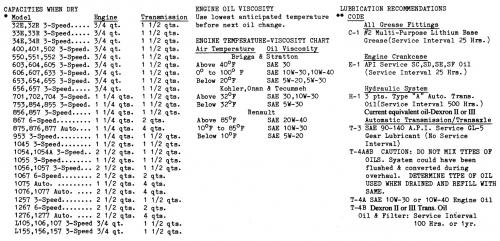

Lube chart SS

Details & Attachments
2 pages 108.48KB

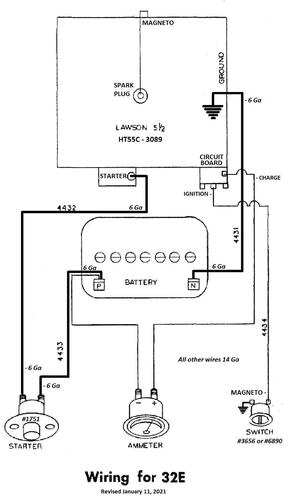

1962 model 32E - Electric start
1962 serial numbers that have shown up for the 32E
62-15649 - Production started before this serial - Trivia Mike Martino Book
62-15649

62-15792
62-16564
62-16824 - Could be a 32R

62-17155 - Could be a 32R
62-17177
62-17190 - Could be a 32R
62-17216 - Could be a 32R

62-17234 - Could be a 32R
62-17303

62-17528
62-19551 - Could be a 32R
62-19555 - Could be a 32R
62-19858 - Could be a 32R
62-20333

62-20482 - Model a guess
62-20610 - Could be a 32R

62-20973 - Could be a 32R
62-21107 - Could be a 32R
62-21125 - Could be a 32R

Details & Attachments
2 pages 108.40KB
1962 model 32R - Recoil start
1962 serial numbers that have shown up for the 32R
62-15649 - Production started before this serial - Trivia Mike Martino Book
62-16944
62-1695x

62-17371
62-18371

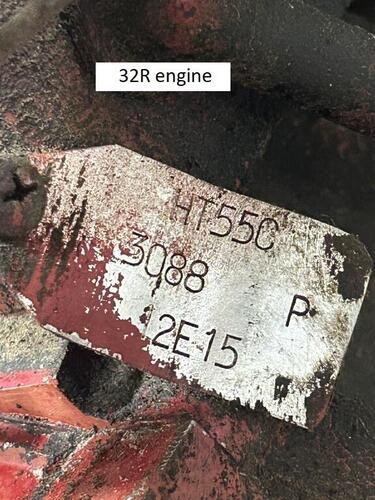

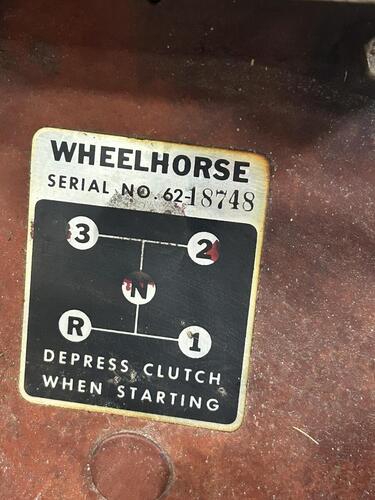

62-18748 - Has HT55C-3088 engine
62-19970
62-20863
62-20890 or 62-20896
62-1695x
62-19970
62-20863
62-20890 or 62-20896

62-20973 - Could be a 32E




×
×
