About This File

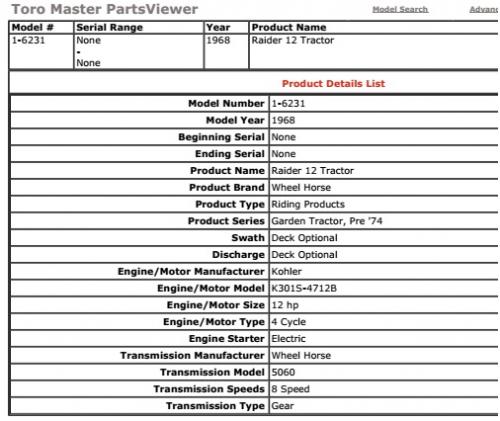

PL from Toro Master Parts Viewer
6 pages 348.66KB
Do not know if PL is correct for early production
Early production using Kohler K301S-4712B with starter/generator and battery ignition
The 1967 wiring should be the same as the 1968 early production
Wiring Color pdf
1 page 350KB
Uses 7263 (Threads 9/16"-24) 3-terminal 3-position BAT-IGN-ST ignition switch.
Starter/generator belt
Kohler 10hp, 12hp - 235262 (7345 Gates .410" x 35.09" 36 degree) (25-7345 Napa .410" x 35.09" 36 degree)
Wheel Horse 1593 (3L x 34.4") - nla (Gates replacement 6735 3/8" x 35" 38 degree)
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
Late production used Kohler K301S-47147B with Bendix starter, 10 amp alternator and magneto ignition with points and condenser

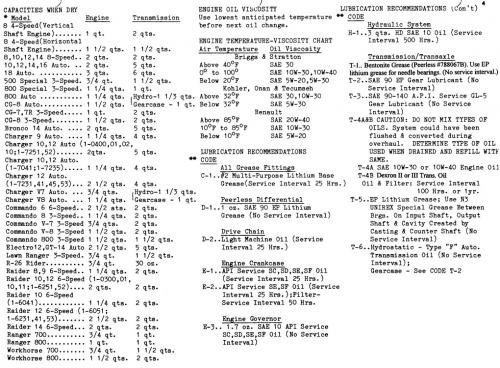

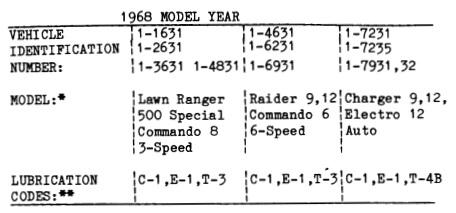

Lube chart SS
Details & Attachments
3 pages 116.88KB
1968 Raider 12 model 1-6231 - Early production (Engine oil capacity 2-1/2 quarts)

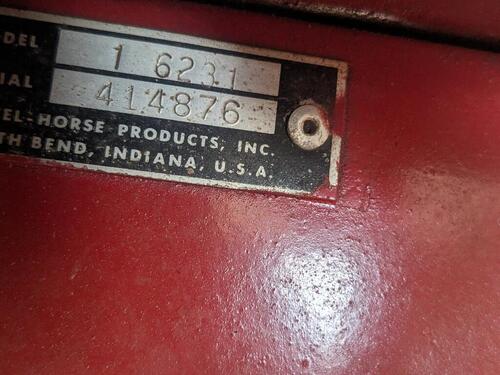

1968 serial numbers that have shown up for the 1-6231
400062 - This group is early production using Kohler K301S-4712B with starter/generator and battery ignition
400086
400194
400262
400351
400403
400410
414506
414516
414685
414946 - This group is early production
Late production
420782 - Charger 12 model 1-7231 is late production with Bendix starter and magneto ignition spec 47147b
425043 - Has Bendix starter
42512x
425183
425308 - Has starter/generator so engine assembly is likely a replacement
428468 - May be a Raider 9 model 1-6931
437097
437141 - Located in the UK
437408
437437
445005 - Has Bendix starter
445130 - Located in Sweden
457642
457743
481216
481328
481580
481671
637318 - The 6 has been added by hand - Made in USA Located in Belgium
