About This File
IPL #A-5344
8 pages 1.92MB
Dated 10/72
Mower Rotary 1972 32in SD model 5-0200 Standard equipment

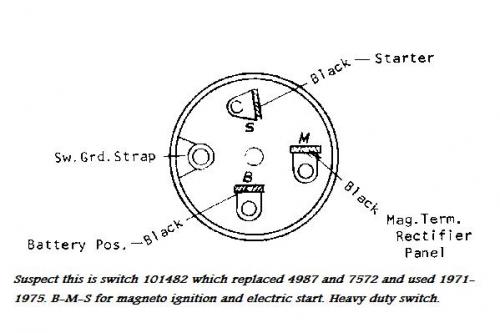

Uses 101482 ignition switch for electric start
1 page 98KB
Uses 102820 ignition switch for recoil start and no longer available
Transmission drive belt 8911 - (4L x 83.10" or 1/2" x 83.1")
4380 blade replaced by 6758 blade replaced by 100355 2-blade set (5/8" x 3/4" hole)

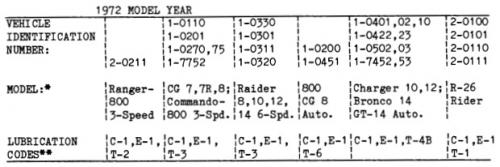

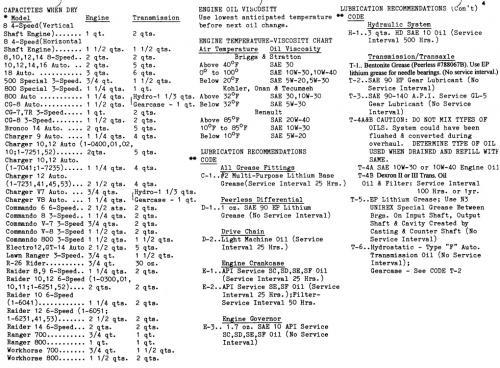

Lube chart SS
Details & Attachments
2 pages 107.74KB
1972 Lawn Ranger 800 model 2-0200 - Recoil start
-----------------------------------------------------------------------------------
Details & Attachments
3 pages 110.37KB
1972 Ranger 800 model 2-0211 - Electric start
