About This File
IPL from Toro Master Parts Viewer
7 pages 354.52KB
Fits C-Series tractors
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 1594 (1/2" x 107.21")

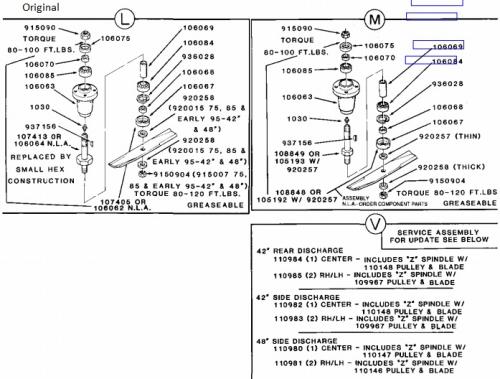

Mower spindle assemblies could be L, M, V or Z
For V see service bulletin 292B
106078 blade replaced by 106637 3-blade set (3/4" round hole)
Mower Rotary 1978 48in SD model 85-48MS01
