About This File
IPL from Toro Master Parts Viewer
6 pages 400.57KB
Fits D-Series Auto tractors
Drive belt 102868 (1/2" x 105.5")
Spindle belt 1594 (1/2" x 107.21")

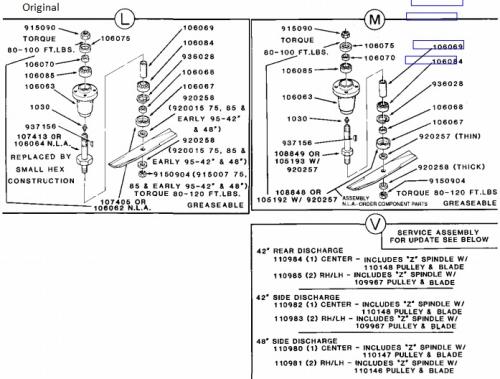

Mower spindle assemblies could be L, M, V or Z
For V see service bulletin 292B
106078 blade replaced by 106637 3-blade set (3/4" round hole)
Mower Rotary 1977 48in SD model 75-48XS02
