About This File
IPL from Toro Master Parts Viewer
7 pages 332.20KB
Fits C-Series tractors
Drive belt 102742 (1/2" x 103")
Spindle belt 1594 (1/2" x 107.21")

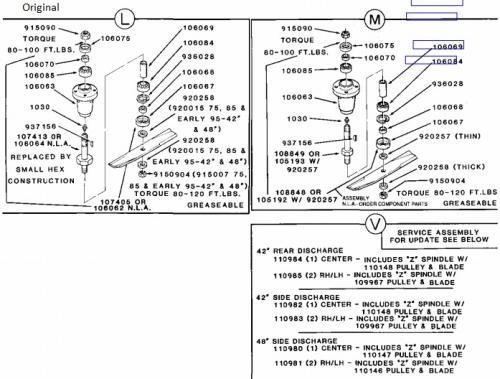

Mower spindle assemblies could be L, M, V or Z
For V see service bulletin 292B
106078 blade replaced by 106637 3-blade set (3/4" round hole) First 48" mower to use these blades
Mower Rotary 1977 48in SD model 75-48MS02
