About This File
IPL from Toro Master Parts Viewer
6 pages 333.47KB
Fits C-Series tractors
Drive belt 102742 (1/2" x 103")
Spindle belt 1594 (1/2" x 107.21")

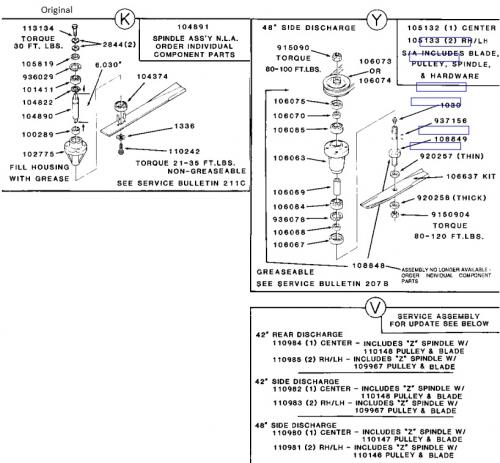

Mower spindle assemblies could be K, V, Y or Z
For V and Y see service bulletin 292B
4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D) Last mower to use these blades
Mower Rotary 1977 48in SD model 75-48MS01
1977 serial numbers that have shown up for the 75-48MS01
006285 - Build date 1976 6321 November 16 Tuesday
006378 - Build date 1976 6327 November 22 Monday
