About This File
IPL from Toro Master Parts Viewer
6 pages 332.78KB
Fits D-Series Auto tractors
Drive belt 102868 (1/2" x 105.5")
Spindle belt 1594 (1/2" x 107.21")

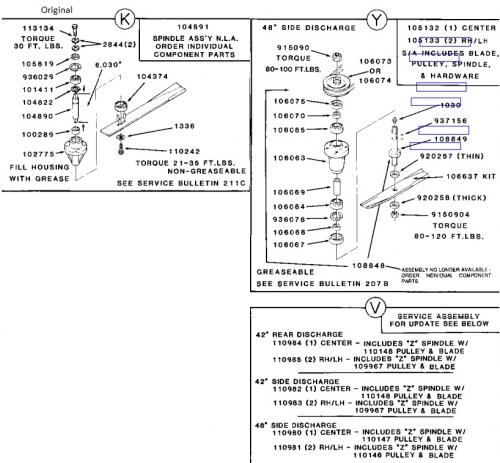

Mower spindle assemblies could be K, V, Y or Z
For V and Y see service bulletin 292B
4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Mower Rotary 1976 48in SD model 65-48XS02
