About This File
IPL from Toro Master Parts Viewer
6 pages 330.06KB
Fits C-Series tractors
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 1594 (1/2" x 107.21")

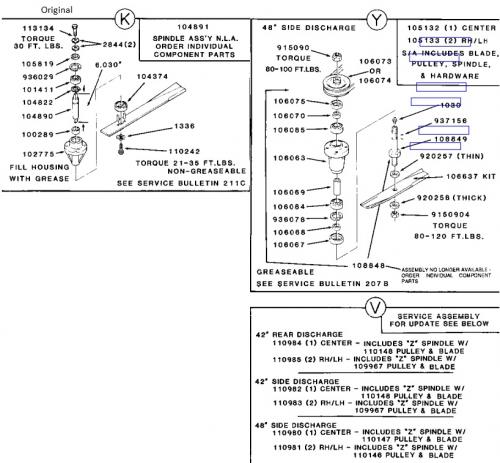

Mower spindle assemblies could be K, V, Y or Z
For V and Y see service bulletin 292B
4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Mower Rotary 1976 48in SD model 65-48MS02
1976 serial numbers that have shown up for the 65-48MS02
024734
