About This File

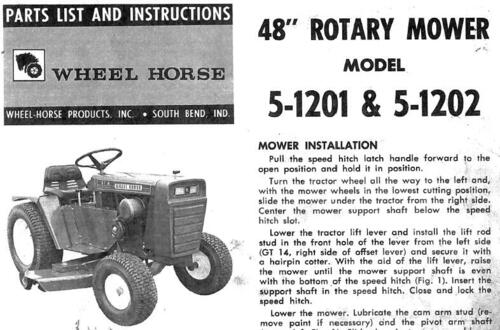

Operator manual #A-5336
IPL
6 pages 1.11MB
Fits GT-14 tractors
See PSB #207b
Drive belt 6771 replaced by 9783 (1/2" x 71")
Spindle belt 1594 (1/2" x 107.21")

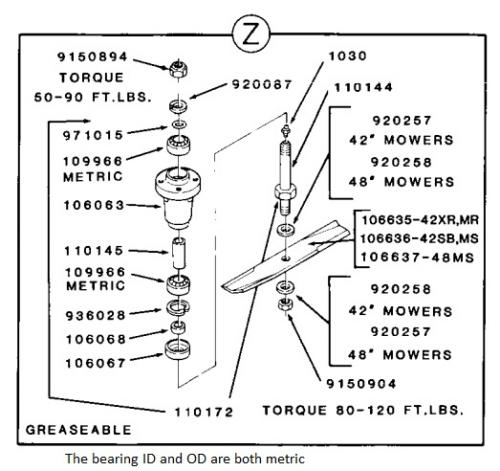

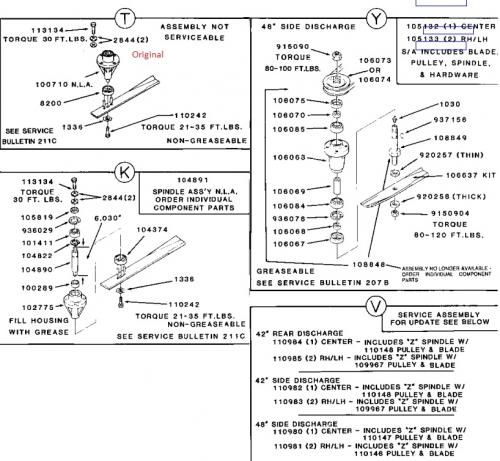

Mower spindle assemblies could be T, K, V, Y or Z
For K see service bulletin 211C
For V and Y see service bulletin 292B
4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Mower Rotary 1973 48in SD model 5-1202

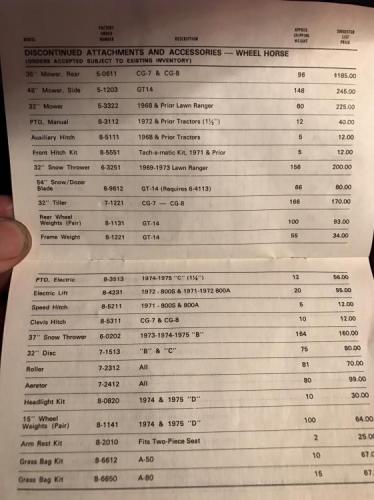

Was still available in 1974 according to the price list
Mower Rotary 1974 48in SD model 5-1203 - Found in 1976 price list
