About This File
IPL from Toro Master Parts Viewer
2 pages 247.60KB
Fits 12hp long frame tractors
Drive belt 6771 replaced by 9783 (1/2" x 71")
Spindle belt 1594 (1/2" x 107.21")

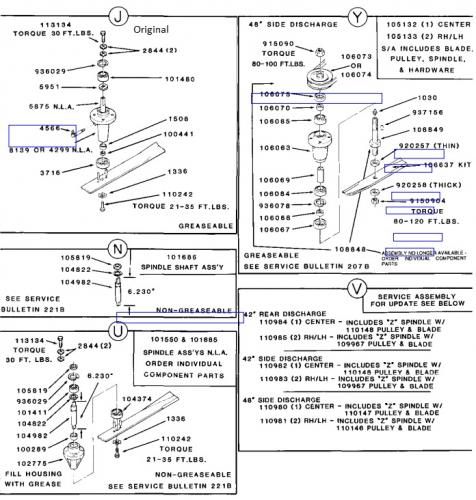

Mower spindle assemblies could be J, N, U, V, Y or Z
For N and U see service bulletin 221B
For V and Y see service bulletin 292B
4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Mower Rotary 1970 48in SD model 5-1483
1970 serial numbers that have shown up for the 5-1483
705901 to 706400 - See PSB #120
706901 to 707100 - See PSB #120
