About This File
Operator manual #3315-397RevA or 3315-397 RevA
8 pages 2.02MB
Setup

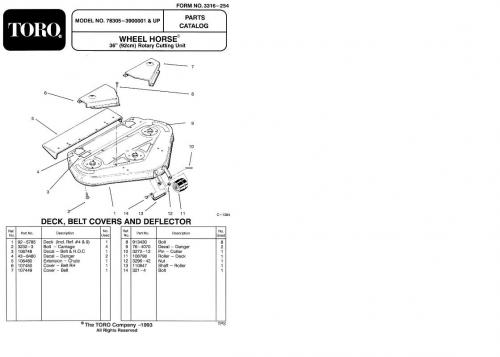

IPL #3316-254
8 pages
Fits 300-Series and 400-Series tractors
Fits B-Series and C-Series tractors
Shipping weight 107 lbs.
Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511
Drive belt 102741 (1/2" x 96.6") for C-Series tractors (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 8411 (1/2" x 76.94")
107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)
Mower Rotary 1993 36in RD model 78305 Serial 3900001-3999999
1993 serial numbers that have shown up for the 78305
3900218
