Mower Rotary 36in RD 1991-1993 05-36MR05 OM IPL SN.pdf

Sign in to follow this

gwest_ca

2 Screenshots

About This File

Operator manual #810518R1 or 810518 R1
8 pages 1.79MKB
Dated 03/87

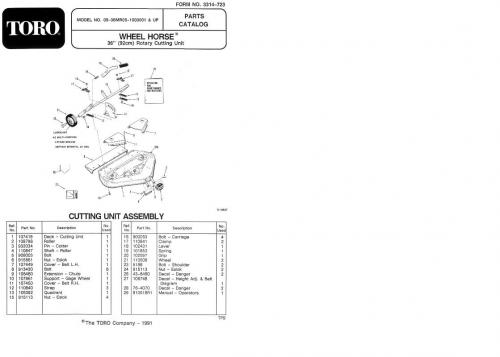

IPL #3314-723
4 pages 737.05KB

Manual listed at Toro for this deck is 810735R1 and wrong. Has 42in and 48in decks only and dated 08-89

Fits 300-Series and 400-Series tractors
Fits B-Series and C-Series tractors


Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511


Drive belt 102741 (1/2" x 96.6") for C-Series and long frame tractors (Gates replacement BladeRunner 6638BR 17/32" x 96.75")



Spindle belt 8411 (1/2" x 76.94")



107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)

Mower Rotary 1991 36in RD model 05-36MR05 Serial 1000001-1099999

Mower Rotary 1992 36in RD model 05-36MR05 Serial 2000001-2999999
1992 serial numbers that have shown up for the 05-36MR05
2000271

Mower Rotary 1992 36in RD model 05-36MR05 Serial 3000001-3999999 - Listed in the Attachment Interchange for 1993




×
×
