About This File
IPL from Toro Master Parts Viewer
6 pages 394.34KB
Fits 200-Series tractors
Drive belt 106533 (1/2" x 40.06")
Spindle belt 106751 (1/2" x 80.5")

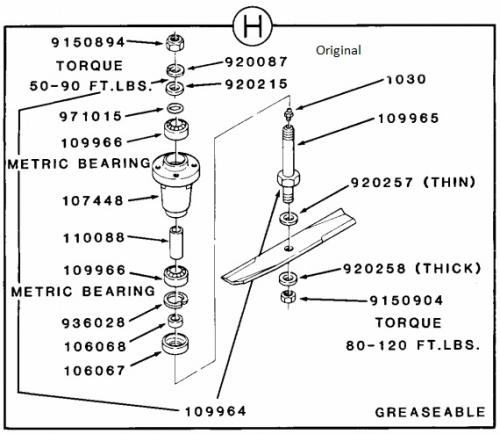

Mower spindle assembly H
107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)
Mower Rotary 1985 36in RD model 05-36XR04
